What are the considerations for selecting the material of the Coffee Machine O Rings?

1. Chemical resistance

When selecting the material for coffee machine O rings, one of the primary considerations is chemical resistance. Coffee machines come into contact with a variety of liquids, including water, coffee grounds, and various cleaning solutions. The O-ring material must be able to withstand the corrosive and abrasive nature of these substances without compromising its sealing properties.

Water, which makes up the bulk of the liquid in a coffee machine, can cause swelling, softening, or even degradation of certain materials over time. Coffee grounds, which are acidic in nature, can also contribute to the breakdown of O-ring materials. Additionally, the detergents and descaling solutions used to clean coffee machines can be highly alkaline or contain harsh chemicals that can attack the O-rings.

To ensure long-term reliability and performance, the O-ring material should be chemically resistant to the specific liquids and cleaning agents used in the coffee machine. Common materials that exhibit excellent chemical resistance include silicone rubber, EPDM (Ethylene Propylene Diene Monomer), and FKM (Fluorocarbon) rubber. These materials are often used in food-grade applications and are specifically designed to withstand the demands of the coffee industry.

2. Temperature resistance

Coffee machines operate in a highly variable temperature environment, with temperatures ranging from ambient room temperature to the high heat generated during the brewing process. The Coffee Machine O Rings material must be able to withstand these temperature fluctuations without compromising its sealing performance or structural integrity.

When exposed to high temperatures, some materials may become brittle, lose their elasticity, or even melt, leading to leaks and potential machine failure. Conversely, materials that are not designed for low-temperature applications may become stiff and lose their ability to seal effectively in cold environments.

Silicone rubber and EPDM are both well-suited for coffee machine applications due to their excellent temperature resistance. These materials can withstand temperatures ranging from as low as -40°C (-40°F) to as high as 200°C (392°F), which covers the typical operating range of most coffee machines. FKM rubber is another option that offers exceptional thermal stability and can handle even higher temperatures, making it a suitable choice for high-performance espresso machines.

3. Hardness

The hardness of the Coffee Machine O Rings material is a critical factor in determining its sealing performance and durability. Hardness is measured on the Shore scale, with a higher Shore value indicating a harder material.

Softer O-rings, with a lower Shore hardness, are more compressible and can conform to irregular surfaces, creating a better seal. However, they may be more susceptible to compression set, where the material permanently deforms over time, compromising the seal. Harder O-rings, on the other hand, are more resistant to compression set but may not conform as effectively to surface irregularities, leading to potential leaks.

For coffee machine applications, a balance between hardness and compressibility is typically sought. O-ring materials with a Shore hardness range of 70 to 90 are commonly used, as they offer a good compromise between sealing performance and long-term reliability. Silicone rubber and EPDM are often found in this hardness range, making them suitable choices for coffee machine O-rings.

4. Physical properties

In addition to chemical and temperature resistance, the physical properties of the Coffee Machine O Rings material also play a crucial role in its performance and longevity. Key physical properties to consider include tensile strength, elongation, and compression permanent deformation rate.

Tensile strength refers to the material's ability to withstand pulling forces without breaking. A higher tensile strength indicates a more durable O-ring that can better withstand the stresses and strains of the coffee machine environment.

Elongation, on the other hand, measures the material's ability to stretch and deform without losing its sealing capabilities. O-rings with higher elongation can better accommodate dimensional changes within the coffee machine, such as those caused by thermal expansion or component wear.

The compression permanent deformation rate is a measure of how much the material will permanently deform under compression. A low compression permanent deformation rate is desirable, as it indicates the O-ring can maintain its shape and sealing properties over extended periods of use.

Silicone rubber and EPDM are known for their excellent physical properties, making them well-suited for coffee machine O-rings. These materials typically exhibit high tensile strength, good elongation, and low compression permanent deformation rates, ensuring reliable sealing performance and a long service life.

5. Anti-extrusion and foaming performance

In coffee machines, particularly those with high-pressure brewing systems, the O-rings are subjected to significant pressure differentials. This can lead to a phenomenon called extrusion, where the O-ring material is forced out of its groove or sealing surface, compromising the seal.

Additionally, the rapid changes in pressure and temperature within the coffee machine can cause the formation of foam, which can erode or degrade the O-ring material over time.

To mitigate these issues, the O-ring material must have good anti-extrusion and anti-foaming properties. Materials like EPDM and FKM are known for their resistance to extrusion, as they can maintain their shape and structural integrity even under high-pressure conditions.

Similarly, the material's ability to resist the formation and effects of foam is crucial. Silicone rubber and EPDM are both relatively resistant to foaming, reducing the risk of premature O-ring degradation in high-performance coffee machines.

6. Coffee Machine O Rings for sale

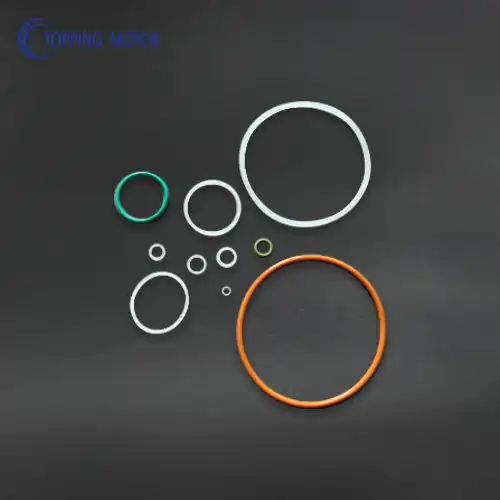

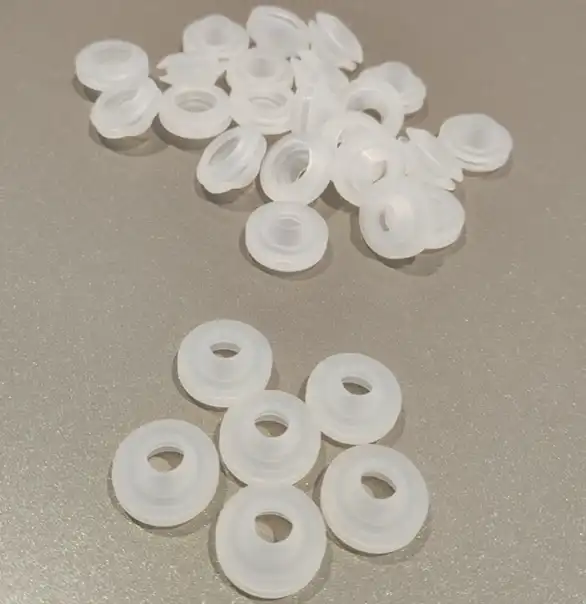

Topping Motor, a reputable manufacturer in the coffee industry, offers a range of O-rings specifically designed for coffee machines. Their product line includes high-precision, small-size Coffee Machine O Rings made from food-grade silicone, rubber, or EPDM.

The use of these materials in Topping Motor's O-rings is intentional, as they provide the necessary chemical resistance, temperature resistance, hardness, and physical properties required for coffee machine applications. Silicone rubber and EPDM, in particular, are well-known for their ability to withstand the demanding conditions found in coffee equipment, including high temperatures, pressure, and exposure to various liquids and cleaning agents.

Topping Motor's focus on precision manufacturing ensures that their O-rings fit correctly and function effectively within a wide range of coffee machine models. This attention to detail is crucial, as even minor variations in dimensions can lead to leaks or improper sealing.

For coffee shop owners, equipment technicians, or manufacturers looking to source high-quality O-rings for their coffee machines, Topping Motor invites inquiries at inquiry@vendingmachinepart.com. By providing specific details about your requirements, such as dimensions, material preferences, and intended application, Topping Motor can assist in selecting the most suitable O-rings for your needs.

References

1. Illy, A., & Viani, R. (2005). Espresso Coffee: The Science of Quality. Academic Press.

2. Schomer, D. (2019). Espresso Coffee: Professional Techniques. Espresso Vivace.

3. Parker O-Ring Handbook. (2018). Parker Hannifin Corporation.

4. Specialty Coffee Association. (2023). Equipment Standards. Retrieved from [SCA website URL]

5. Gloess, A. N., Schönbächler, B., Klopprogge, B., D'Ambrosio, L., Chatelain, K., Bongartz, A., ... & Yeretzian, C. (2013). Comparison of nine common coffee extraction methods: instrumental and sensory analysis. European Food Research and Technology, 236(4), 607-627.

6. Topping Motor. (2024). Coffee Machine O-Ring Specifications.
