Control Board For Vending Machine

Introduction

The control board for vending machine uses a high-performance, low-power, eight-core application processor from Rockchip RK3588, which is equipped with Android 12.0/Linux system and the main frequency is up to 2.4GHz.

The embedded 3D GPU makes the RK3588 fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2. Integrated LVDS, MIPI, double Gigabit Ethernet, wifi, Bluetooth, 4G interface, 5G interface, 5W*2 power amplifier, TF card expansion, infrared remote control, serial /IO expansion, HDMI output, HDMI input, MIC, backlight power supply and other functions, greatly simplifying the whole machine design. Support most of the current popular video and picture format decoding. The board can drive a variety of TFT and LCD display, greatly simplify the whole system design and stronger stability.

Widely used in AI server, face payment equipment, intelligent retail, especially the coffee vending machine.

The control board for vending machine is a urgent part in the activity and usefulness of robotized vending frameworks. Filling in as the focal sensory system, it arranges the perplexing dance of apportioning merchandise while guaranteeing smooth exchanges and client fulfillment. This presentation dives into the vital angles and functionalities of this fundamental part.

At its center, the control board is a refined electronic hardware that coordinates different sensors, actuators, and correspondence modules to deal with each feature of vending machine tasks. Its essential goal is to screen stock levels, process installments safely, and work with the determination and conveyance of items to clients flawlessly.

One of the central highlights of current control boards is their flexibility and versatility to various vending machine designs and item types. Whether vending bites, drinks, or even electronic contraptions, the control board can be modified and customized to oblige assorted stock and vending necessities.

Moreover, the vending machine control panel assumes a vital part in guaranteeing the security and trustworthiness of vending exchanges. High level encryption conventions and secure correspondence channels are frequently utilized to protect delicate installment information and foil any endeavors of altering or extortion.

Notwithstanding its functional functionalities, the control board likewise offers important bits of knowledge through information examination and telemetry. By gathering and examining vending exchange information progressively, administrators can acquire significant bits of knowledge into buyer inclinations, stock patterns, and machine performance, empowering them to enhance loading levels, estimating systems, and in general productivity.

The control board for vending machine remains as the foundation of robotized retailing, mixing state of the art innovation with vigorous usefulness to convey a consistent and compensating experience for the two administrators and buyers the same. Its proceeded with development vows to rethink the scene of vending, introducing a period of extraordinary comfort and effectiveness.

Main Features, Performance, and Market Advantages

RK3588 board main features:

▼ High integration: Integrated USB/LVDS/EDP/HDMI/ Ethernet /WIFI/Bluetooth in one, also can be inserted TF card, simplify the whole machine design,.

▼ High stability: Whether in hardware or software, increase the technology developed by the division to ensure the stability of the product.

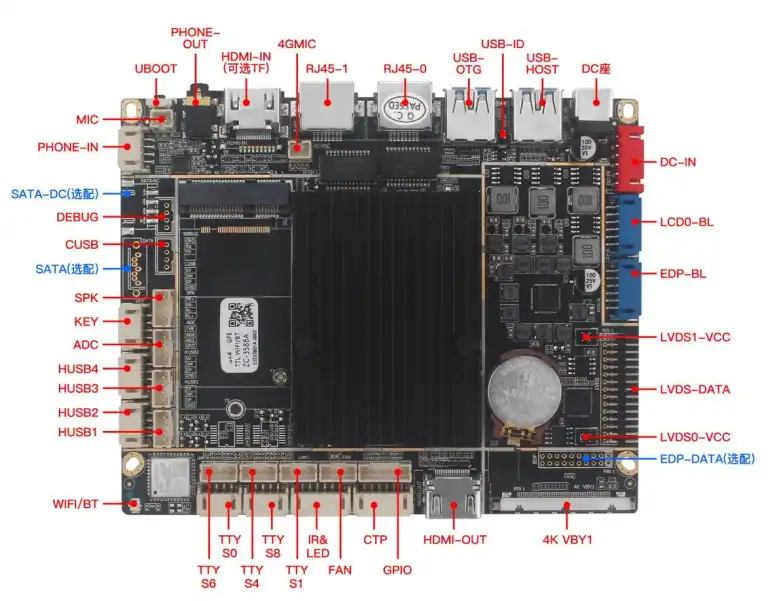

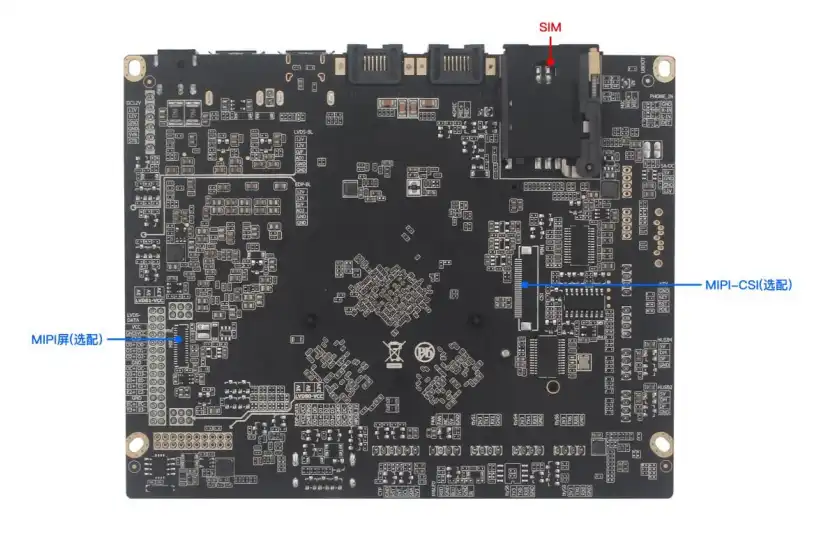

▼ Rich expansion interface: A standard TYPE-C port , 7 USB ports (5 pins, 2 standard USB3.0), 5 expandable serial ports, GPIO/ADC interfaces, a SATA port, a 4G interface, and a 5G interface, in order to meet the requirements of various peripherals on the market.

▼ High definition: Support up to 7680×4320 decoding (HDMI output) and various LVDS/EDP interface LCD display.

▼ Complete functions: Support horizontal and vertical screen playback, video split screen, scrolling subtitles, timing switch, USB data import and so on.

▼ Easy management: Humanized playlist background management software, easy to play advertising management and control.

Control boards for vending machines boast a plethora of features designed to enhance performance, reliability, and user experience. These boards are engineered to seamlessly integrate with various vending machine configurations and accommodate diverse product types. Key features include:

• Versatile Compatibility: Control boards are compatible with different vending machine types, including beverage, snack, and combination units, ensuring broad applicability across various retail sectors.
• Payment Processing Integration: Advanced control boards support multiple payment methods, including cash, credit/debit cards, mobile payments, and contactless transactions, facilitating convenient and secure transactions for consumers.
• Inventory Management: These boards utilize advanced sensors and software algorithms to monitor inventory levels in real-time, enabling timely restocking and preventing stockouts.
• Remote Monitoring and Management: Many control boards feature remote monitoring capabilities, allowing operators to track sales, monitor machine health, and troubleshoot issues remotely, thereby minimizing downtime and optimizing operational efficiency.
• Customizable User Interface: Control boards offer customizable user interfaces with interactive touchscreen displays, enabling intuitive navigation and enhancing the overall user experience.
• Enhanced Security: Robust encryption protocols and tamper-proof mechanisms safeguard sensitive data and prevent unauthorized access, ensuring the security of transactions and machine assets.
• Energy Efficiency: Energy-efficient design features optimize power consumption, reducing operational costs and environmental impact.

Specification Parameter

Parameter	Specification
CPU	Octa-core (quad-core Cortex-A76, quad-core Cortex-A55) 64-bit, up to 2.4Ghz
GPU	ARM Mali G610 3D GPU, Supporrt OpenGL ES 1.1/2.0/3.2、OpenCL 2.2、Vulkan 1.2
NPU	RKNN NPU, computility up tp 6 TOPS
Mermory	4G/8G
Internal Mermory	32G /64G/128G/256G
Display	EDP/HDMI 2.1/MIPI/LVDS/DP（TYPE-C )/V BY ONE  4K
System	Android 12/Debian11/Ubuntu 20.04
Mode	Loop, timing, and interjection
Multi-media	Support MPEG-1，MPEG-2，MPEG-4，H.263，H.264，H.265，VC-1，VP9，VP8，MVC，AV1
Power supply interface	1 built-in 2.54MM 6P power input interface and 1 diameter 6.0MM inner core 2.0MM DC plug interface
LVDS output	1 LVDS output interface, 30 PIN DuPont，directly drive 50/60Hz multiple resolution LCD screen
MIPI output	1 MIPI output interface，31 PIN FPC，up tp 4K @ 60fps output
EDP output	1 EDP output interface，20 PIN DuPont，up to 4K @ 60fps output（and V By One, can only choose one output）
V By One output	1 V BY ONE output interface，up to 4K @ 60fps output(and EDP, can only choose one output)
HDMI output	1 A type interface，support HDMI TX 2.1，up to 8K @ 60fps out put
HDMI input	1 A type interface、support HDMI RX 2.0，up to 4K @ 60fps video input (choose one patch with TF card)
TF card	Support 16G/32G/64G/128G(SD3.0,MMC ver4.51 protocol support larger capacity, and HDMI input one patch)
CTP interface	1 I2C touch screen interface
Remote control and indicator	Support infrared remote control button control, support equipment working status light indication.
Serial port/expansion port	5 TTL, 4 GPIO.
Audio output	1 3.5mm headphone port, 1 dual channel speaker output port
Audio intput	1 3.5mm headphone jack (US gauge), 1 4P 2.0 socket LIN-IN port.
Gravity sensor	Supported, none by default
RTC Real-time clock	Supports, and supports timing switch
USB interface	2 USB 3.0（Support cancel 1 USB 3.0 and add 1 TYPE-C(Compatible with DP1.4 output, up to 8K@30fps）、5 built-in USB sockets.
System update	USB upgrade/wireless upgrade/computer upgrade
Network support	1. Dual network port design, support 10/100/1000M adaptive Ethernet.2. Built-in WiFi, Bluetooth, WIFI support hotspot sharing.3. Expand 4G/5G Internet access.
Size	140mm*112.5mm/±0.5mm，thickness 1.6mm±10%.
Ambient environment	Temperature: -20-70℃, recommended 5-35°C. Humidity: 10% ~ 90%, no condensation.

Working Principle

1. Input Handling: Control boards get inputs from different sources, including client communications, sensors distinguishing stock levels, and installment handling modules.
2. Independent direction: In light of the data sources got, the control board executes dynamic calculations to decide activities, for example, apportioning items, handling installments, and refreshing stock records.
3. Yield Control: Control boards connect with electromechanical parts like engines, actuators, and show units to execute the ideal activities, for example, apportioning items, showing information, and handling installments.
4. Correspondence: High level control boards include correspondence conventions like Wi-Fi, Bluetooth, and cell network to work with remote checking, programming updates, and information examination.

Application Fields

1. Retail: Control boards find extensive application in vending machines deployed in retail environments such as malls, airports, train stations, and office buildings, offering convenient access to a wide range of products.
2. Hospitality: In hotels, resorts, and entertainment venues, control boards power vending machines offering snacks, beverages, and personal care items, enhancing guest satisfaction and generating ancillary revenue.
3. Healthcare: Vending machines equipped with control boards are utilized in healthcare facilities to provide patients, visitors, and staff with access to essential supplies, snacks, and beverages.
4. Education: Schools, universities, and campuses deploy vending machines featuring control boards to offer students and faculty convenient access to snacks, beverages, and study aids.

Topping Motor:

Topping Motor is a leading manufacturer and supplier of Control Board For Vending Machine, with a vast inventory and comprehensive certifications. We specialize in OEM and ODM solutions, offering one-stop standard services, fast delivery, and meticulous packaging. Our control boards are thoroughly tried to guarantee dependability, performance, and consistence with industry norms. For inquiries and partnerships, please contact us at sales@huan-tai.org.
In conclusion, control boards for vending machines represent the epitome of technological innovation and efficiency in the automated retail sector. With their advanced features, robust performance, and diverse applications, these boards play a pivotal role in shaping the future of vending machine operations and customer experiences.
