Product Description
1. Product Details
Vending Machine Board adopts Rockchip RK3399 (dual Cortex-A72 large core + four Cortex-A53 small core) six-core 64-bit super CPU, equipped with Android9.0/Linux system, the main frequency is up to 1.8GHz. Mali-T860MP4 GPU, support 4K, H.265 hard decoding.

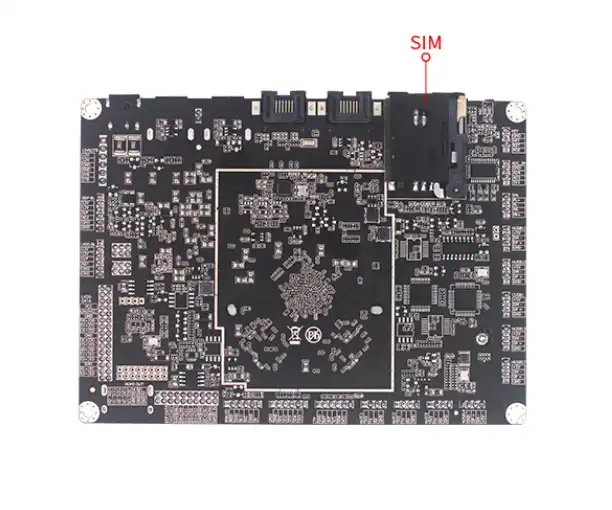

Board integrated multimedia decoding, LCD driver, Ethernet, HDMI, WIFI, 3G, Bluetooth in one, support most of the current popular video and picture format decoding, support HDMI video output/input, two double 8 LVDS interface and one EDP interface, can drive a variety of TFT LCD display. Greatly simplify the whole machine system design. TF card and locking SIM card holder for greater stability.
2. Specification Parameter
| Parameter | Details |
| CPU | Rockchip 3399 64-bit high-performance CPU, 1.8GHz; Dual Cortex-A72 large-core + quad-Cortex-A53 small-core 64-bit CPU with built-in low-power MCU Cortex-M0 |
| GPU | Quad-core ARM Mali-T860MP4 High-Performance GPU |
| Memory | 2G/4G |
| Internal memory | EMMC Standard 16G/32G/64G |
| Built-in ROM | 32KB EEPROM |
| Decoding resolution | Up to 3840*2160 |
| Operating system | Android 9.0/Debian10 |
| Mode | Supports a variety of playback modes, such as loop, timing, and interjection |
| Network support | 4G、Ethernet, support WiFi/ Bluetooth 4.0, wireless peripheral expansion |
| Video display | AVI（H.264、DIVX、DIVX、XVID）, rm，rmvb， MKV（H.264、DIVX、DIVX、XVID），WMV，MOV，MP4（.H.264、MPEG、DIVX、XVID），DAT（VCD），VOB（DVD），PMP,MPEG，.MPG,， FLV（H.263，H.264），ASF ，TS， TP，3GP，MPG etc. |
| USB interface | 2 USB 3.0, 6 built-in USB sockets |
| Serial port | Default 4 TTL serial port socket (RS232 or 485) |
| GPS | External GPS (optional) |
| WIFI、BT | Built-in WIFI, BT4.0 |
| 4G | Built-in WCDMA,EVDO,4G full Netcom, support voice calls |
| Ethernet | 1, adaptive 100M Ethernet |
| TF card/HDMI IN | 1 TF card socket (standard)/ HDMI IN standard interface can be changed |
| LVDS output | 1 single/dual channel, can directly drive 50/60Hz multiple resolution LCD screen |
| EDP output | Directly drive a variety of resolutions EDP interface LCD screen |
| HDMI output | 1, support 1080P@120Hz, 4kx2k@30Hz output |
| CTP interface | 1 CTP |
| Audio and video output | Support left and right channel output, built-in dual 8R/5W power amplifier |
| RTC real-time clock | Support |
| Programmable TV sleep timer | Support |
| System | SD card/PC updates |
| Ambient temperature | -20°C-70°C, recommend 5℃～35℃ |
3. Main Features, Performance, and Market Advantages

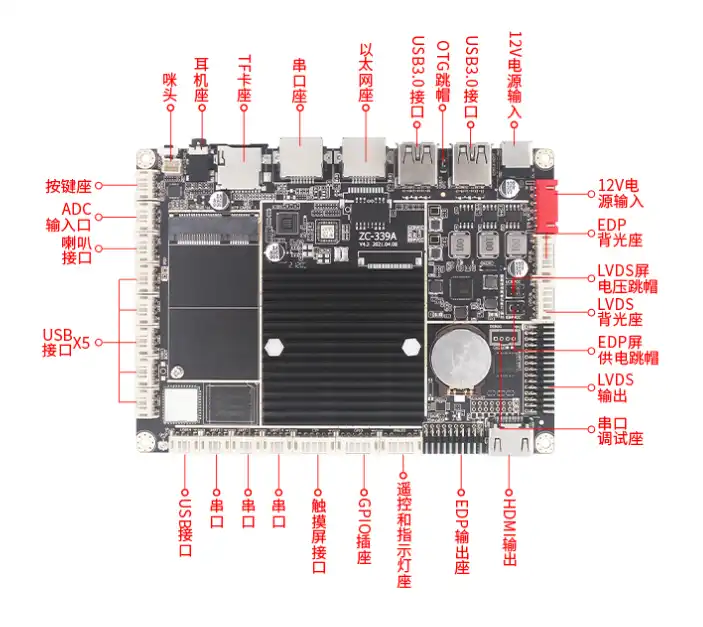

- High integration: Integrates USB/LVDS/EDP/HDMI/ Ethernet /WIFI/Bluetooth in one, simplifies the whole design, can be inserted TF card.
- Labor cost saving: Built-in PCI-E 4G module, support Huawei, Longshang and other PCI-E 3/4G module, save labor cost.
- Rich expansion ports: 8 USB ports (6 pins, 2 standard USB3.0),4 expandable serial ports, GPIO/ADC ports, can meet the requirements of various peripheral devices in the market.
- High definition: Support up to 3840×2160 decoder and various LVDS/EDP interface LCD display.
- Features: LVDS output interface,EDP output interface, supporting horizontal and vertical screen playback, video split screen, scrolling subtitles, timing switch, USB data import and other functions.
- Easy management: humanized playlist background management software, easy to play advertising management and control.
4. Working Principle
The working of the product can be outlined into a few key stages:
Item Determination: At the point when a client chooses an item from the vending machine， sensors identify the information and hand-off the data to the vending machine Board.
Installment Handling: The board interacts with installment frameworks to handle the picked installment strategy, confirming its credibility and deducting the comparing sum from the client's record.
Stock Administration: All the while, the board refreshes the stock information base, decrementing the stock level of the chose item.
Item Apportioning: Upon fruitful installment confirmation, the board sets off the administering component, delivering the picked item to the client.
Exchange Logging: At long last, the board logs the exchange subtleties for record-keeping and examination purposes, adding to deals following and stock administration.
5. Application Fields
The product track down application across different enterprises and conditions, including:
Retail: In retail settings, vending machine circuit board power self-administration stands for apportioning things like gadgets, beauty care products, and extras, offering clients day in and day out admittance to items without the requirement for customary store designs.
Food and Drink: In the food and drink area, these sheets work with the activity of vending machines administering tidbits, refreshments, and prepared to-eat dinners, taking special care of customers' in a hurry ways of life.
Transportation Center points: They are sent in transportation center points, for example, air terminals, train stations, and transport terminals, giving travelers admittance to fundamental things and rewards during their movements.
Professional workplaces: Inside professional workplaces, vending machines outfitted with these sheets offer representatives advantageous admittance to tidbits, refreshments, and office supplies, advancing working environment effectiveness and fulfillment.
Medical services Offices: In medical services settings, vending machines loaded with clinical supplies, individual consideration things, and solid tidbits, constrained by it, improve patient solace and comfort.
Topping Motor:
Besting Engine is a main maker and provider of Vending Machine Board, offering a thorough scope of items custom-made to meet the different necessities of the distributing business. With an enormous stock and complete declarations, Beating Engine guarantees the best expectations of value and dependability. We support OEM and ODM prerequisites, offering one-stop standard types of assistance, quick conveyance, and tight bundling. Experience the productivity and accommodation of our product - reach us at sales@huan-tai.org to find out more.
